ZYSJ-2476K high-performance intelligent motherboard, using Ruixin Micro RK3576 high-performance AI processor, neural network processor NPU, Android 14.0/debian/ubuntu operating system, RK3576 is based on quad core Cortex-A72+quad core Cortex-A53, with a clock speed of up to 2.2GHz, using 8nm technology, and has super powerful general-purpose computing performance. The GPU adopts quad core Mali-G52 MC3, and the CPU integrates AI neural network processor NPU, with a computing performance of up to 6.0TOPS, supporting multiple AI development tools and interfaces. Support dual screen display function, support LVDS interface 1080P output, eDP and MiPi display interface output, HDMI-4K output, support dual gigabit Ethernet, 4G/5G network, WiFi, USB extension/gravity sensing/CAN/RS232/RS485/IO extension/I2C extension/MIPI camera/infrared remote control and other functions, rich interfaces, a new eight core AI chip with super performance makes the product more perfect, widely used in AI servers, facial payment devices, security, medical, transportation, finance, industrial control, smart education, intelligent retail and other AI intelligent fields. Due to its hardware platformization and Android intelligence, it can be used on smart terminal motherboards for human-computer interaction and network device interaction.

Features:
High performance: RK3576 is based on quad core Cortex-A72+quad core Cortex-A53, with a clock speed of up to 2.2GHz and super powerful general computing performance. The GPU adopts quad core Mali-G52 MC3, and the CPU integrates an AI neural network processor NPU, with a computing performance of up to 6.0 TOPS. It supports multiple AI development tools and interfaces, and can directly apply TensorFlow/Caffe/Mxnet general model conversion. It provides AI development tools and supports Android NN API, RKNN cross platform API, and TensorFlow development interface.

High stability: RK3576 artificial intelligence motherboard adds its own unique technology in hardware and software to ensure product stability, enabling the final product to achieve 7 * 24-hour unmanned operation.

High integration: The RK3576 artificial intelligence motherboard adopts a military grade TG170-8 layer ultra high density PCB board, integrating Ethernet, WiFi, 18W amplifier, IR remote control function HDMI、LVDS、eDP、MiPi、 The microphone, gravity sensing, and other functions greatly simplify the overall design of the machine. The ultra-thin motherboard design can make the whole machine more aesthetically pleasing.

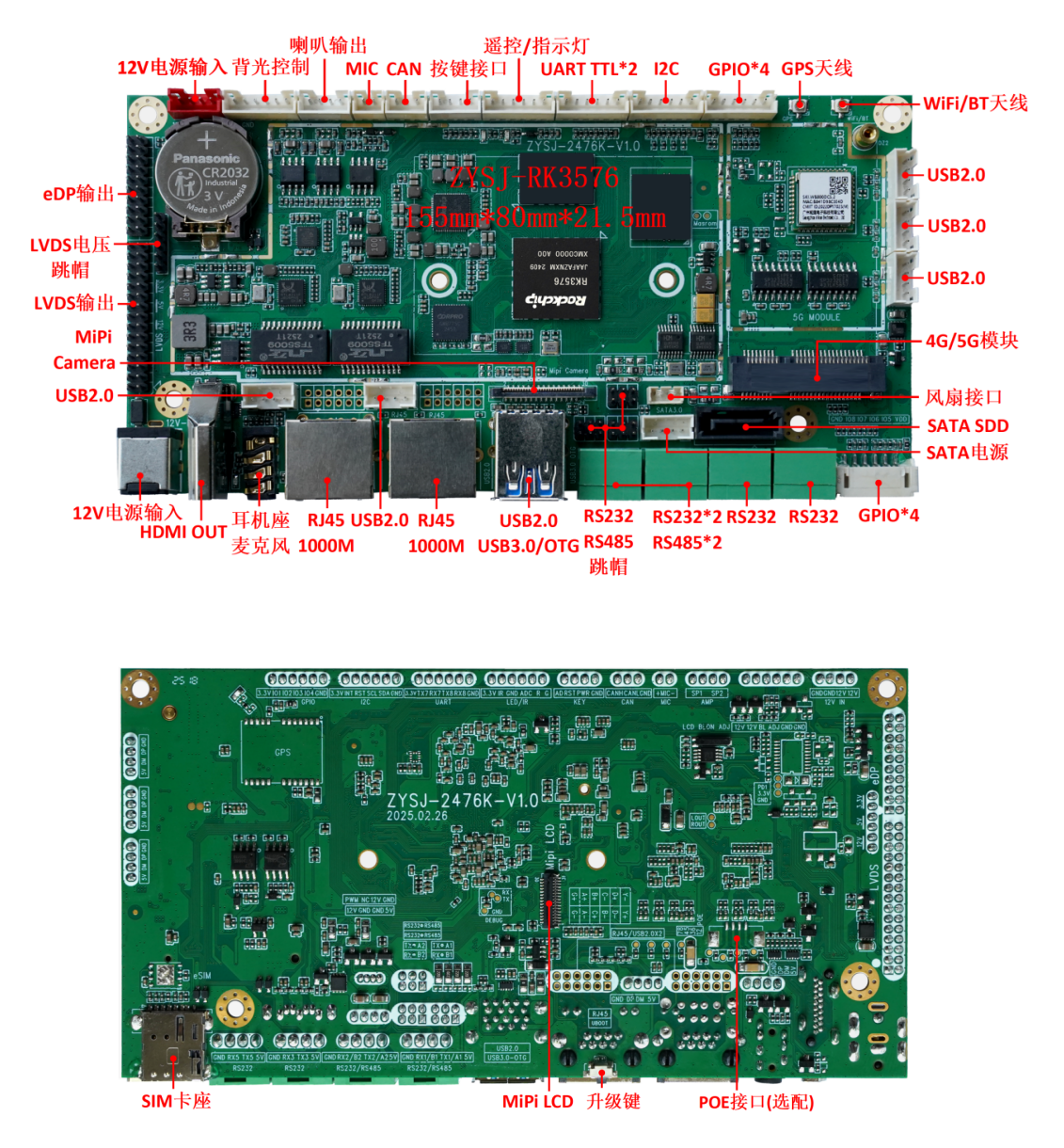

High scalability: seven USB interfaces, one CAN interface, two UART interfaces, one I2C interface, eight IO expansion ports, one AD interface, two RS232 interfaces, two RS232/RS485 interfaces, capable of expanding more peripheral devices.
