/The RK3588 is an eight core 64 bit CPU based on the Cortex-A76+A55 architecture using an 8nm LP process, with a clock speed of up to 2.4 GHz and super powerful general-purpose computing performance. The GPU adopts a high-end quad core Mali-G610, and the CPU integrates an AI neural network processor NPU, supporting IN4/IN8/INT16 hybrid computing with a computing performance of up to 6.0 TOPS. It also supports multiple AI development tools and interfaces. Support multi screen display function, support 6/8-bit LVDS interface 1080P output, eDP and MiPi display interface output, support HDMI -8K output and HDMI -4K input, support dual gigabit Ethernet, 2.4/5G dual band WiFi, support Bluetooth 5.0, support M.2/SATA/USB3.0/4G, 5G module/gravity sensing/GPS/CAN/RS232/RS485/IO expansion/I2C expansion/MIPI camera/infrared remote control and other functions, rich interfaces, a new eight core artificial intelligence chip with super strong performance makes the product more perfect, widely used in smart fire protection, smart construction sites, industrial quality inspection, unmanned vehicles, smart agriculture, smart sorting machines, AI robots, cloud servers, intelligent NVR, etc. Metaverse ARM PC、 In the fields of security, healthcare, transportation, finance, industrial control, education, retail, and more. Due to its hardware platformization and software intelligence, when human-computer interaction and network device interaction are required, a perfect experience can be achieved on the intelligent terminal motherboard.

Features:
High performance: RK3588 is equipped with the flagship high-performance AIoT processor from Ruixin Micro, running on Android 12.0/Linux

The RK3588 is an eight core 64 bit CPU based on the Cortex-A76+A55 architecture using an 8nm LP process,

With a clock speed of up to 2.4 GHz, it has super powerful general-purpose computing performance. The GPU adopts high-end quad core Mali-G610, and the CPU is internal

Integrated AI neural network processor NPU, supports IN4/IN8/INT16 mixed operations, with a computing performance of up to 6.0 TOPS, supports multiple AI development tools and interfaces, can achieve general model conversion based on TensorFlow/Caffe/Mxnet/pyTorch, provides AI development tools, and supports Android NN API, RKNN cross platform API, and TensorFlow development interface.

High stability: RK3588 artificial intelligence motherboard adds its own unique technology in hardware and software to ensure product stability, enabling the final product to achieve 7 * 24-hour unmanned operation.

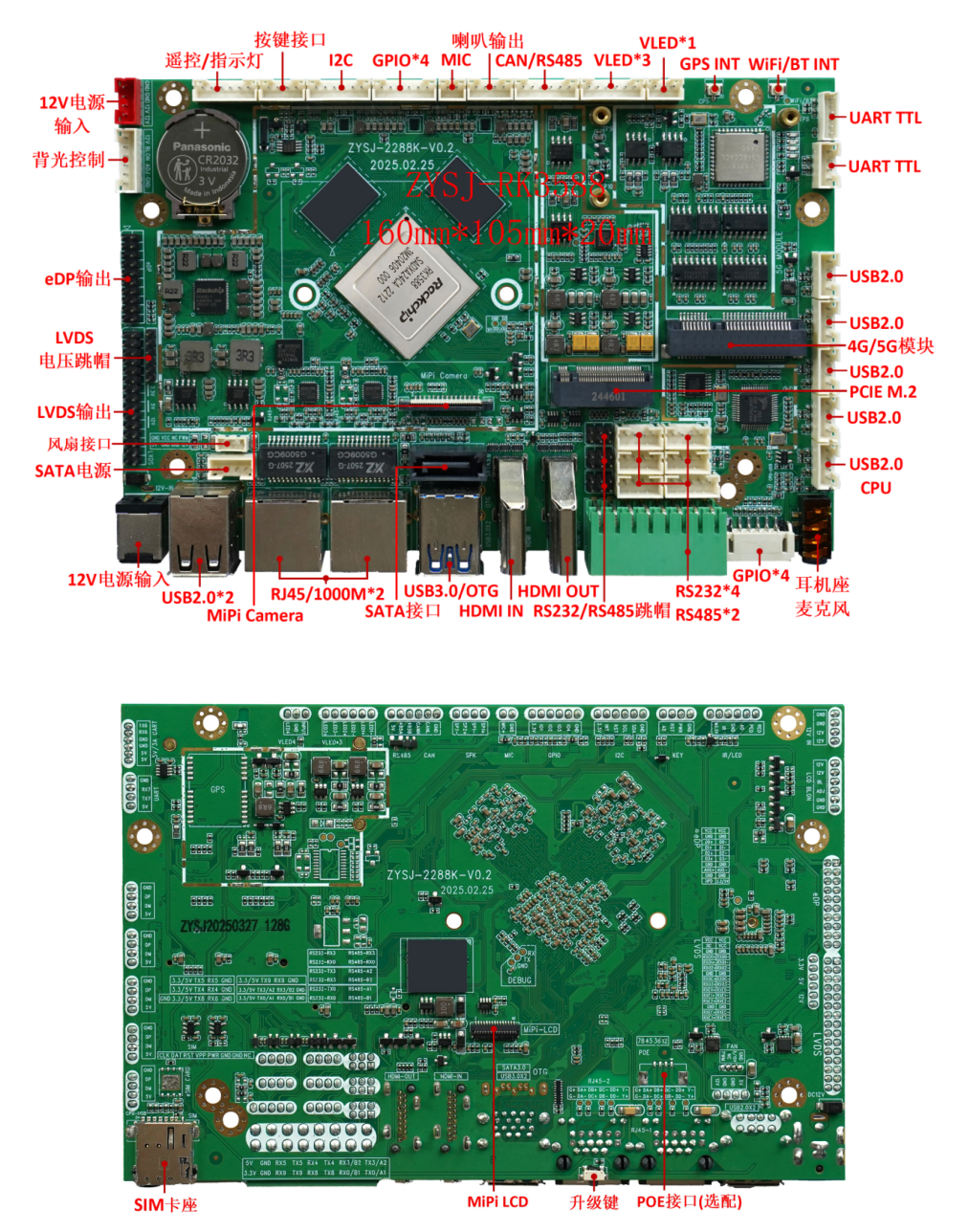

High integration: The RK3588 artificial intelligence motherboard adopts TG170-10 layer ultra high density PCB board, integrating dual gigabit Ethernet, 2.4/5G dual band WiFi, Bluetooth 5.0, 18W amplifier, M.2 expansion SATA、 Built in 4G/5G module interface, IR remote control function, HDMI output, HDMI input LVDS、eDP、MiPi、 The microphone, gravity sensing, GPS and other functions greatly simplify the overall design of the machine. The ultra-thin motherboard design can make the whole machine more aesthetically pleasing.

High scalability: Nine USB ports, four RS232 ports, two UART ports, one RS485 port, two RS232/RS485 ports (with skip cap selection), one CAN port, one I2C port, eight IO expansion ports, four 5/12V high current control ports, one AD port, and one POE port can expand more peripheral devices.
