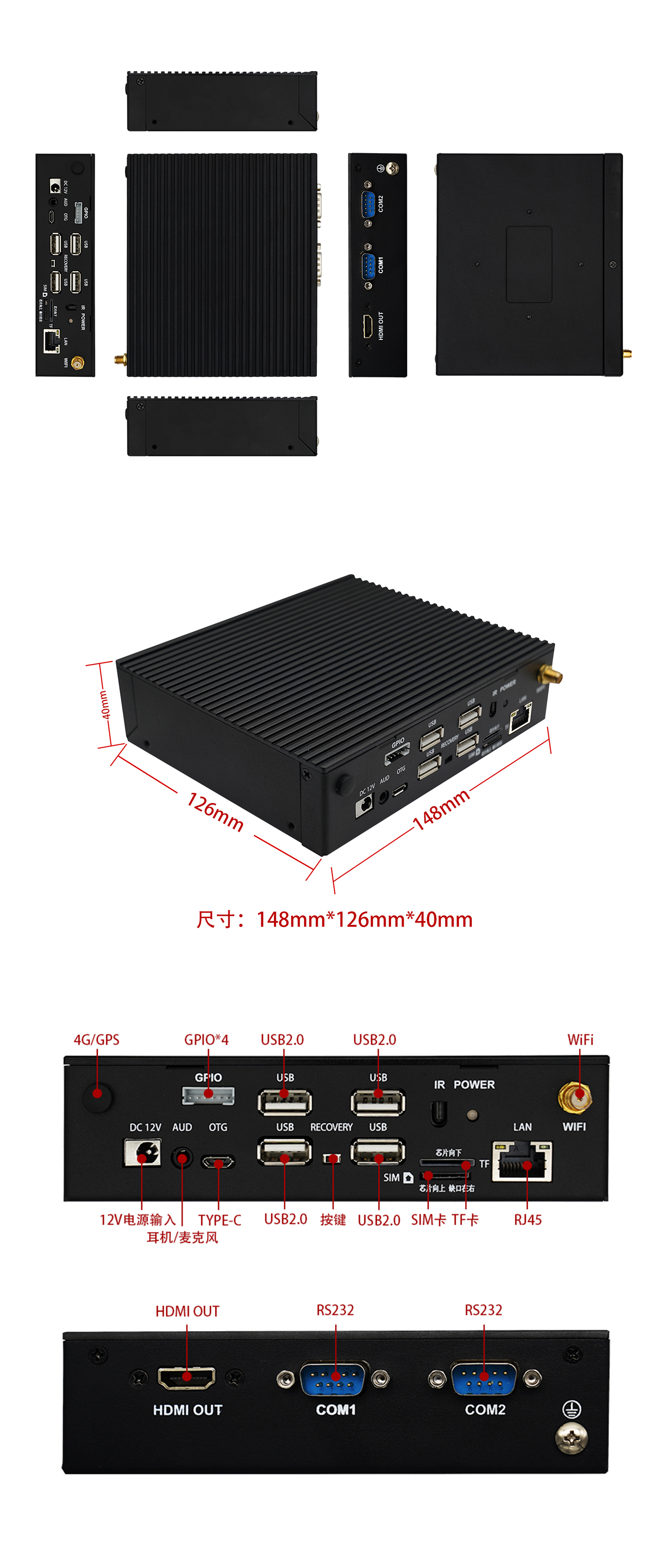

RK3399 industrial control box

Summary:
RK3399 industrial control box adopts the RK3399 six core 64 bit server class chip scheme, support Valley Android/Linux
Operating system, RK3399 is based on dual-core A72+ quad-core A53 architecture six-core 64-bit CPU, GPU adopts quad-core Mali-T860 supports mainstream audio and video formats and picture decoding; With HDMI-4K output, Ethernet, WIFI, GPS, 4G / 5G module, RS232, USB, IO port expansion and other functions.

Scope of application:

RK3399 industrial control box is a multifunctional intelligent terminal control box, widely used in: advertising machine, Ai robot, self-service terminal, transportation, finance, industrial control, intelligent education, intelligent retail and other intelligent fields.

 Features:

1. High definition: HDMI 2.0 supports 4K 60Hz output
2, support USB cable, TF card, computer and other upgrading methods
3. TF card /U disk is configured with screen parameters, which can be lit immediately after insertion, perfectly supporting display of various sizes and resolutions
4, perfect support industry mainstream release software, industry application software, that is, out of the box
5, perfect support industry mainstream USB/ serial port equipment, printer, card reader, password keyboard, fingerprint instrument, camera, body
Certificate identification, two-dimensional code scanner, demo test program provided.
6. Highly integrated: It has Ethernet, WIFI, 4G / 5G, GPS, 2-way RS232, GPIO, 5-way USB expansion, etc Multiple interface modes.
