PX30 strip screen special board

Summary:
PX30 Android integrated board, adopts Ruixin Micro PX30 four-core chip scheme, supports Google Android9.0 system, PX30 adopts ARM's new quad-core A35 core chip and Mali-G31GPU series are adopted for GPU, with the highest running score of over 40,000 points Performance: Hard solution of H.265, decoding of mainstream audio and video formats and pictures, dual screen display function, dual 6/8/10 LVDS interface, 1080P output, can drive 7 inch to 108 inch display, support MiPi display interface output, support HDMI-2K output. Support infrared remote control, gravity sensing/support serial port /IO port expansion/fill light interface /MIPI camera and other functions, rich interface, a new four-core chip with super performance to make the product more perfect, is widely used in advertising machine, interactive all-in-one, security, medical, transportation, finance, industrial control and so on intelligent control field. Because of its hardware platform, Android intelligent characteristics, in need of human-computer interaction, network device interaction, can be used on the intelligent terminal motherboard.
Features:

High performance: PX30 chip adopts quad-core A35 scheme, which is one of the most cost-effective quad-core chips in RK system at present. Using the new four-core chip PX30 motherboard scheme, compared with the common market single core, dual core, four core, in performance has a qualitative leap, can play a variety of formats high-definition 2K video, can handle complex interactive operations.
High stability: PX30 Android integrated board, in hardware and software, increase their own unique technology to ensure the stability of the product, can make the final product to 7*24 hours unattended.

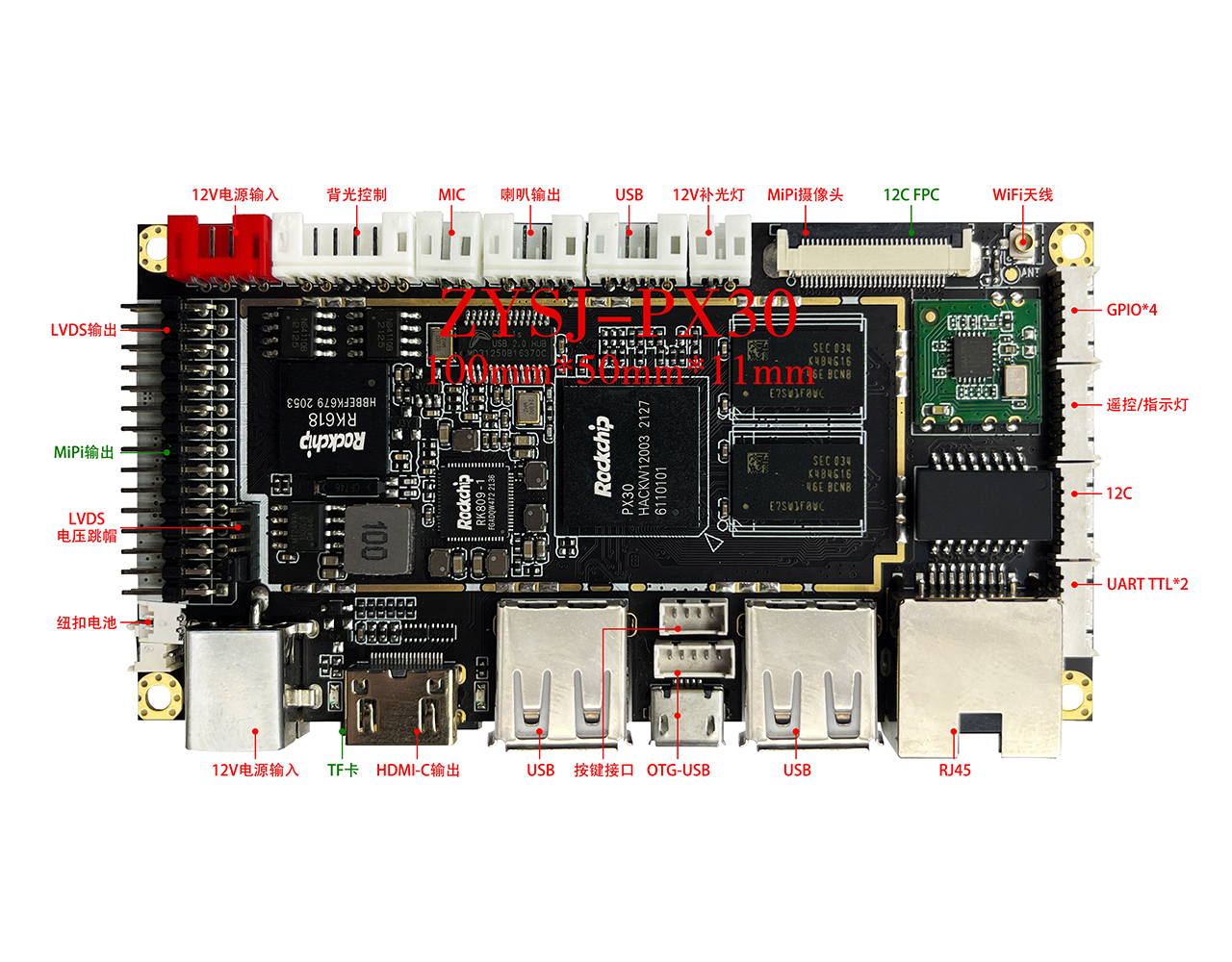

High integration: The PX30 Android integrated board integrates 100 megabit Ethernet, WiFi, 18W power amplifier, TF card expansion, IR remote control function, HDMI output, LVDS, microphone, complement light, MIPI and other functions, greatly simplifying the whole machine design. Ultra-thin motherboard design, can make the whole machine design more beautiful.
High scalability: four USB ports, two serial ports, one I2C port, four IO expansion ports can expand more peripheral devices.
