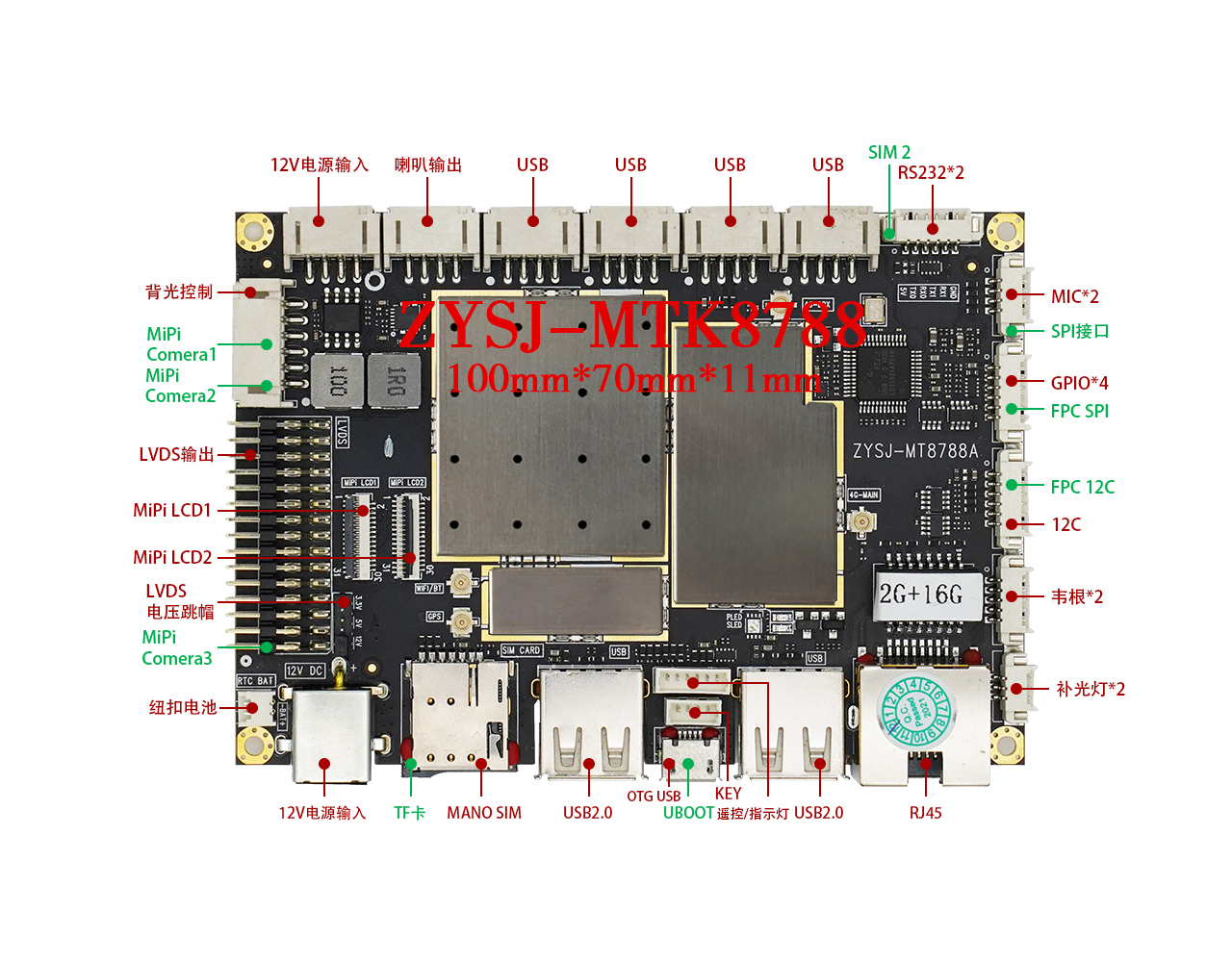

MTK8788 High performance Android motherboard

Summary:
MT8788A high performance intelligent motherboard, using Mediatek MT8788 high performance and high integration based on 12nm process processor. MT8788 is an octa-core CPU based on quad-core A73+ quad-core A53 architecture, the main frequency is up to 2.0GHz, with super general computing performance, Mali-G72 GPU, support Android 9.0 operating system, support dual screen display function. Double 6/8 bit LVDS interface, support 1080P output, support MiPi display interface output, support infrared remote control, Support LTE 4G full netcom dual-card dual-standby function, support 2.4GHz/5GHz dual-band WiFi, support Bluetooth 4.2-BLE function, support 100 megabit state network, support gravity sensing /GPS/ SPI interface/Weigen interface/serial port /IO port /MIPI camera and other functions, rich interface, A new eight-core with strong performance of artificial intelligence motherboard to make the product more perfect, is widely used in intelligent communication equipment, face payment equipment, security, medical, transportation, finance, industrial control, intelligent education, intelligent retail and other intelligent fields. Because of its hardware platform, Android intelligent characteristics, in need of man-machine interaction, network device interaction Can be used on the intelligent terminal motherboard.

Features:

High performance: MT8788 is an eight-core CPU based on the 12nm process of quad-core A73+ quad-core A53 architecture. The main frequency is up to 2.0GHz, with super general computing performance. The GPU adopts high-end Mali-G72 MP3 processor with the highest main frequency 800MHz, super performance chip can handle complex interactive operations.
High stability: MT8788 intelligent motherboard, in hardware and software, increase their own unique technology to ensure the stability of the product, can make the final product up to 7*24 hours unattended.
High integration degree: MT8788 motherboard adopts military grade TG170-10 layer second-order ultra-high density PCB board, integrated 4G, 100 Mbit/s Ethernet, 2.4G/5G dual-frequency WiFi, Bluetooth 4.2BLE, 18W power amplifier, TF card expansion, RS232, Weigen interface, IR Remote control function, LVDS, MiPi, microphone, gravity sensing, GPS and other functions, greatly simplified the design of the whole machine. Ultra-thin motherboard design, can make the whole machine design more beautiful.
High scalability: six USB ports, two Wiegen interfaces, two RS232 interfaces, two supplementary light interfaces, one I2C, one SPI interface, four IO expansion ports, one AD interface and so on can expand more peripheral devices.
