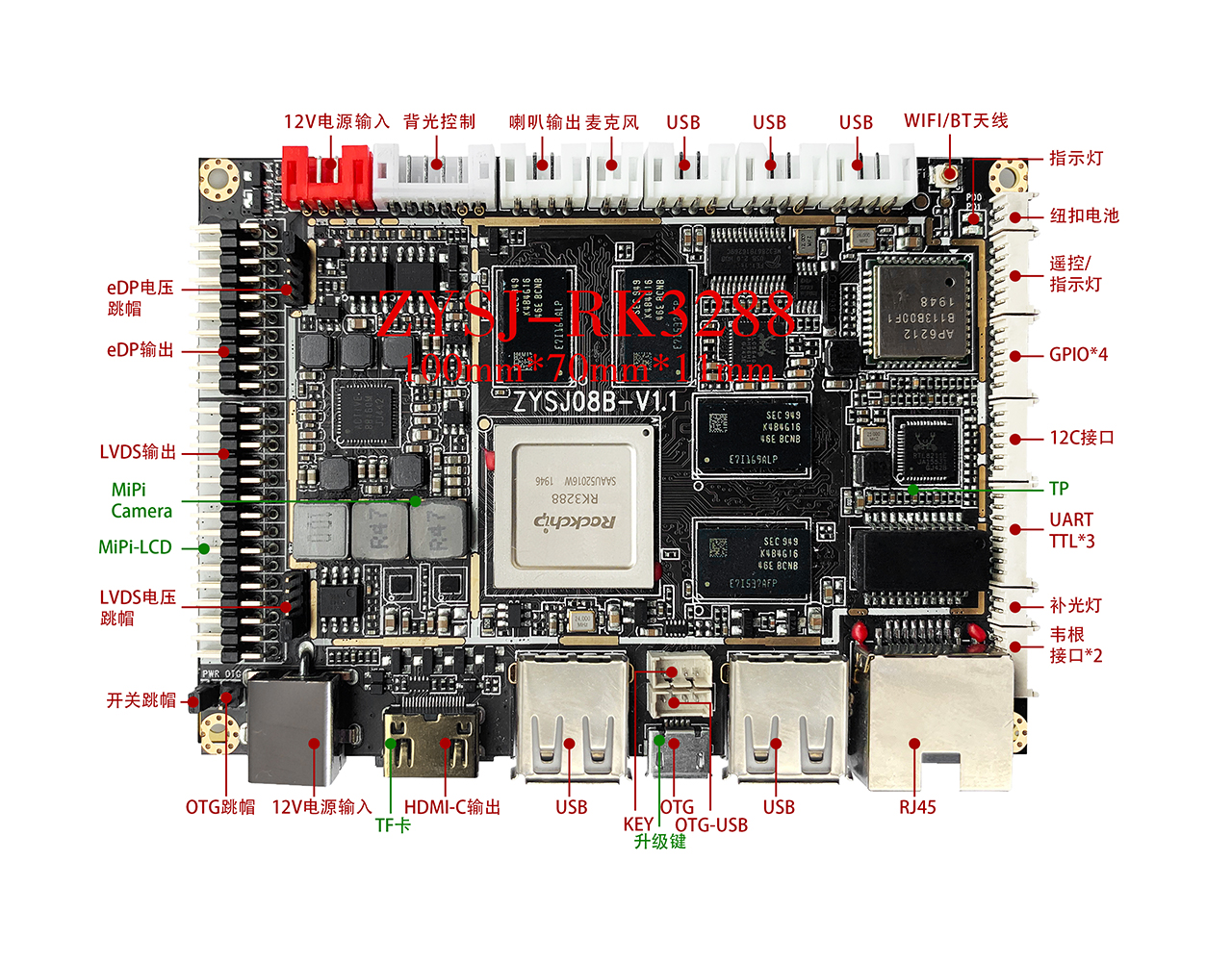

RK3288 High Performance Android Motherboard (ZYSJ08B)

Summary:
RK3288 Android integrated board, using Rui Xin Micro RK3288 four-core chip scheme, support Google Android7.1/9.0 systemIn general, RK3288 adopts the new ARM quad-core A17 core chip, the GPU adopts the super Mali-T76x series, the run score is up to more than 70,000 points of super performance, support 4Kx2K, support hard solution H.265, support mainstream audio and video formats and image decoding. Supports dual-screen display. Dual 6/8/10-bit LVDS ports support 1080P output and can drive 7-inch to 108-inch 1080P displays. Supports eDP and MiPi display interface output. Supports HDMI-4K output and 4K level video playback. Support infrared remote control, Bluetooth, gravity induction/support serial port /IO port expansion/Weigen interface/refill light interface /MIPI camera and other functions, rich interface, a new four-core chip with super performance to make the product more perfect, It is widely used in advertising machine, interactive all-in-one machine, security, medical, transportation, finance, industrial control and other intelligent control fields. Because of its hardware platform, Android intelligent characteristics, in need of human-computer interaction, network device interaction, can be used on the intelligent terminal motherboard.
Features:
High performance: RK3288 chip adopts quad-core A17 scheme, which is one of the strongest quad-core chips in RK system. mining With a new four core super performance chip RK3288 motherboard scheme, compared with the market common single core, dual core, four core, eight Nuclear program, a qualitative leap in performance, can play a variety of formats HD 4K*2K video, can deal with complex mutual Dynamic operation.
High stability: RK3288 Android integrated board, in hardware, software, increase their own unique technology to ensure the product Stability, can make the final product up to 7*24 hours unattended.
High integration: RK3288 Android integrated board integrates Gigabit Ethernet, WiFi, Bluetooth, 6W power amplifier, TF card expansion, IR remote control function, HDMI output, LVDS, eDP, microphone, fill light lamp, gravity sensing, MIPI and other functions, Greatly simplified the design of the whole machine. Ultra-thin motherboard design, can make the whole machine design more beautiful.
High scalability: six USB ports, three serial ports, two Weigen ports, one I2C port, four IO expansion ports can be expandedDisplay more peripheral equipment.
