RK3399 High performance Android motherboard C2

Summary:
ZYSJ1739C2 Android integrated board, using the chip RK3399 six core 64 bit server class chip scheme, support Google
Android 7.1/9.0/11.0 operating system, RK3399 is based on dual-core A72+ quad-core A53 architecture six-core 64-bit CPU, GPU adopts quad-core Mali-T860, support mainstream audio and video formats and picture decoding. Support dual screen display function, double 6/8-bit LVDS interface 1080P output, support eDP and MiPi display interface output, support HDMI-4K output. Support infrared remote control, state network, WiFi, Weigen interface, relay interface, supplementary light interface, gravity sensing, USB expansion, serial port expansion, IO port expansion, MIPI camera and other functions, rich interface, a new six-core chip with super performance to make the product more perfect, It is widely used in advertising machine, interactive all-in-one machine, security, medical, transportation, finance, industrial control and other AI intelligent control fields. Because of its hardware platform, Android intelligent characteristics, in need of human-computer interaction, network device interaction, can be used on the intelligent terminal motherboard.

Features:

High performance: RK3399 chip adopts six-core CPU,GPU adopts Mail-T860 four-core GPU, using super performance
RK3399 motherboard scheme, compared with the common motherboard scheme in the market, there is a qualitative leap in performance, can play a variety of latticeType ultra HD 4K*2K video, can handle complex interactive operations.
High stability: RK3399 Android integrated board, in hardware and software, increase their own unique technology to ensure the stability of the product, can make the final product to 7*24 hours unattended.

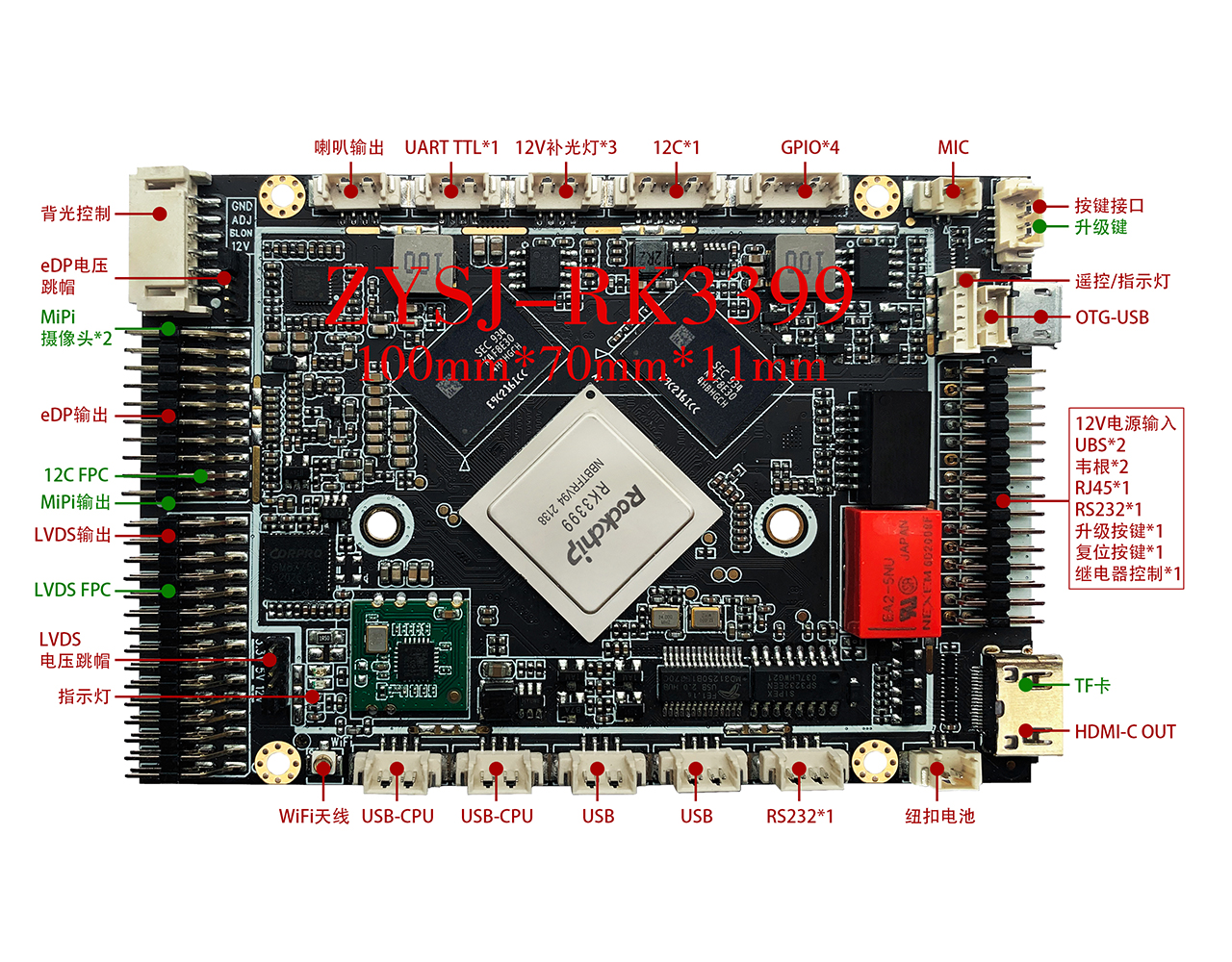

High integration: RK3399 Android integrated board uses military TG170-10 layer ultra-high density PCB board, ultra-thin process 100mm*70mm*13.8mm, integrated Ethernet, WiFi, power amplifier, TF card expansion, USB, RS232, Weigen Interface, relay interface, supplementary light interface, IR remote control function, HDMI output, LVDS, eDP, MiPi, microphone, gravity induction and other functions, greatly simplified the design of the whole machine. Ultra-thin motherboard design, can make the whole machine design more beautiful.
High stability: five USB ports, two Wigan ports, two RS232 ports, one UART port, one I2C port, four IO ports, and one AD port can expand more peripheral devices.
